ONU-8145X6 is an intelligent GPON and Wi-Fi 6 routing-type ONU. It uses the GPON Wi-Fi 6 technology to implement ultra-broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

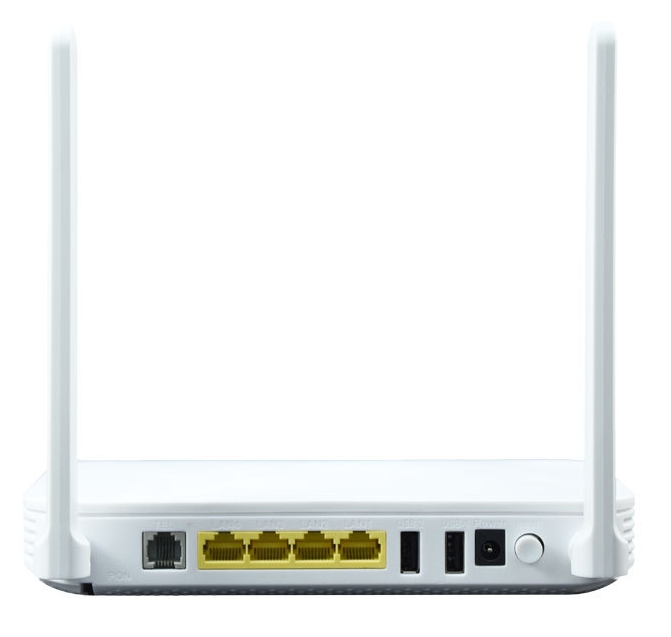

It provides 4 GE ports, 1 POTS port, 2 USB port and 1 2.4G&5G Wi-Fi port.
Technical Parameters:
PON port | Class B+ Receiver sensitivity: -27dBm Overload optical power: -8 dBm Wavelengths: US 1310 nm, DS 1490 nm Flexible mapping between GEM Port and TCONT GPON: consistent with the SN or password authentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA Type B (single-homing&dual-homing) |
Transmission rate | |
Memory | |
UNI | 4*GE+1*POTS+2.4G/5G Wi-Fi6+2USB |
Optical connector | SC/APC |
Indicators | Power/PON/LOS/LAN/TEL/USB/WLAN/WPS |
Ethernet port | Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s |
WLAN | IEEE 802.11 b/g/n/ax (2.4G) IEEE 802.11 a/n/ac/ax (5G) 2 × 2 MIMO (2.4G) 2 × 2 MIMO (5G) Antenna gain: 5 dBi WMM/Multiple SSIDs/WPS 2.4G&5G concurrent Air interface rate: 574 Mbit/s (2.4G), 2402 Mbit/s (5G) 160MHz frequency bandwidth |
POTS port | Maximum REN: 4 G.711A/μ, G.729a/b and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol) |
Multicast | IGMP v2/v3 proxy/snooping MLD v1/v2 snooping |
| Security | Sfirewall Filtering based on MAC/IP/URL addresses |
QoS | Ethernet port rate limitation 802.1p priority SP/WRR/SP+WRR Broadcast packet rate limitation |
Layer 3 features | PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP DDNS/DNS server/DNS client IPv6/IPv4 dual stack Static/Default routes Multiple services on one WAN port |
Operating temperature | 0°C to 40°C |
Operating humidity | 5% RH to 95% RH (non- condensing) |
Power adapter input | 100–240 V AC, 50/60 Hz |
System power supply | 12 V DC, 1.5 A |
Static power consumption | 6 W |
Maximum power consumption | 18 W |
