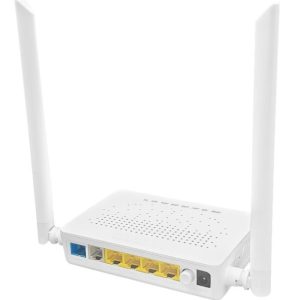

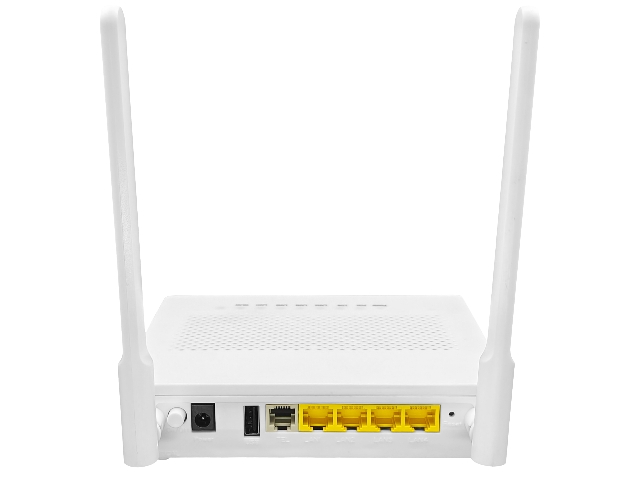

ONU-8546M

Network side interface

GPON

User side interface

1POTS+1GE+3FE+2.4G Wi-Fi+1USB

Fiber optic interface

SC/UPC

GPON

Class B+

Receiver sensitivity: -28dBm

Overload optical power: -8dBm

Wavelength: upstream 1310nm, downstream 1490nm

Flexible mapping between GEM Port and TCONT

Authentication method: Password/Lloyd/SN

Bidirectional FEC (Forward Error Correction)

DBA supporting SR and NSR

Type B (Single ownership&Dual ownership)

Ethernet port

VLAN Tag/Tag Stripping Based on Ethernet Port

1: 1 VLAN/N: 1 VLAN/VLAN transparent transmission

QinQ VLAN

MAC address restrictions

MAC address learning

Adaptive 10/100/1000Mbit/s

WLAN

IEEE 802.11 b/g/n (2.4G)

Antenna gain: 2dBi

Multiple SSIDs, WPS

Air interface speed: 300Mbps (2.4G)

POTS

Support G.711A/u, G.729a/b, G.722 encoding and decoding

Emergency call (SIP protocol)

Three layer characteristics

PPPoE/Static IP/DHCP Address Acquisition Method

NAT/NAPT

Port forwarding

IPv6/IPv4 dual stack

Static route/default route

One WAN port carries multiple services

Multicast

IGMP v2/v3 proxy/snooping

MLD v1/v2 snooping

QoS

Ethernet port speed limit

802.1p priority

SP/WRR/SP+WRR

Broadcast message rate limit

Security

SPI firewall

MAC/IP/URL address filtering

O&M

OMCI/Web UI/TR069

Working Temperature

0°C ~ +40°C

Working Humidity

5% RH ～ 95% RH，non-condensing

Power adapter input

100V ～ 240V AC，50/60 Hz

Whole machine power supply

12 V DC，1.5 A

Indicator light

POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS

Installation method

Desktop flat placement, supports wall hanging
