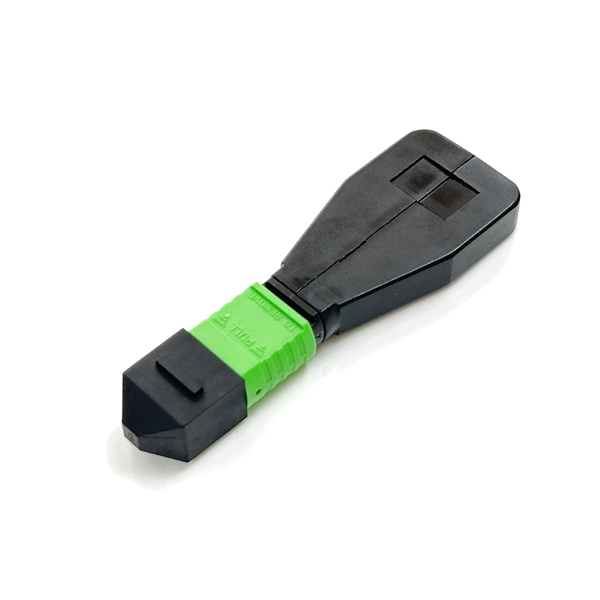

MPO/MTP Loopback

Categories: Fiber Loopback Cables, MPO / MTP Solution Tags: Loopback, MPO, MTP

Description

MPO/MTP Loopback cables provide a looped signal from the source device to hardware for testing purposes. This allows for a signal check for both the transmit and receive functions.

Features:

Used in testing applications
100% optically tested in factory
Available with plastic protective shell

Additional information

Polish Type	PC / APC
Fiber Type	Singlemode: 9/125(OS1/2) Multimode: 10Gig(OM3/OM4)
Insertion Loss (Single Fiber)	Singlemode: ≤0.70dB Multimode: ≤0.50dB
Durability (IEC 61300-2-2)	<0.2dB (500 cycles)
Operating Temperature	-20°C to +70°C
