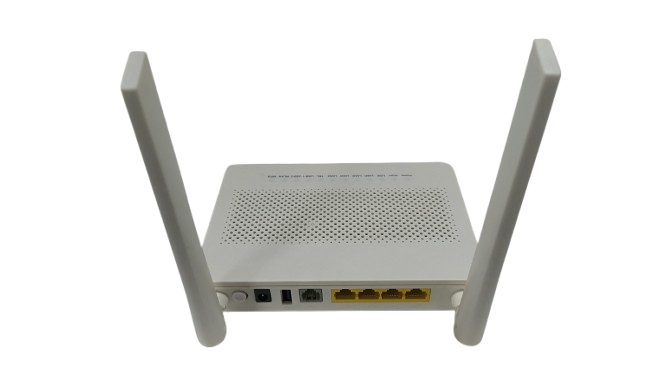

ONU-8145V512 is a routing type ONU for all-optical access solutions, which achieves ultra wideband access for users through GPON technology.
By effectively ensuring the business experience of voice, data, and high-definition video through high-performance forwarding capabilities, we provide customers with ideal all-optical access solutions and future oriented business support capabilities.
Technical Parameters:
Network side interface | GPON |
User side interface | 1POTS+4GE+2.4G/5G Wi-Fi+1USB |
Fiber optic interface | SC/UPC,SC/APC |
GPON | Class B+ Receiver sensitivity: -27dBm~-29dBm Overload optical power: -8dBm Wavelength: upstream 1310nm, downstream 1490nm Supports Bandstop Filter (WBF): G.984.5 Flexible mapping between GEM Port and TCONT Authentication method: Password/Lloyd/SN Bidirectional FEC (Forward Error Correction) DBA supporting SR and NSR Type B (Single ownership&Dual ownership) |
Ethernet Port | VLAN Tag/Tag Stripping Based on Ethernet Port 1: 1 VLAN/N: 1 VLAN/VLAN transparent transmission QinQ VLAN MAC address restrictions MAC address learning Adaptive 10/100/1000Mbit/s |
WLAN | IEEE 802.11 b/g/n (2.4G) IEEE 802.11 a/n/ac (5G) 2 × 2 MIMO (2.4G&5G) Antenna gain: 5dBi WMM (Wi Fi Multi Media), Multiple SSIDs, WPS 2.4G/5G concurrent Air interface speed: 300Mbps (2.4G); 867Mbps(5G) |
POTS | Support G.711A/u, G.729a/b, G.722 encoding and decoding Emergency call (SIP protocol) |
Three layer characteristics | PPPoE/Static IP/DHCP Address Acquisition Method NAT/NAPT Port forwarding IPv6/IPv4 dual stack Static route/default route One WAN port carries multiple services |
Multicast | IGMP v2/v3 proxy/snooping MLD v1/v2 snooping |
QoS | Ethernet port speed limit 802.1p priority SP/WRR/SP+WRR Broadcast message rate limit |
Security | SPI firewall MAC/IP/URL address filtering |
O&M | OMCI/Web UI/TR069 |
Working temperature | 0°C ~ +40°C |
Working humidity | 5% RH ～ 95% RH，non-condensing |
Power input | 100V ～ 240V AC，50/60 Hz |
Power supply | 12 V DC，1.5 A |
Indicator light | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS |
Installation method | Desktop flat placement, supports wall hanging |
