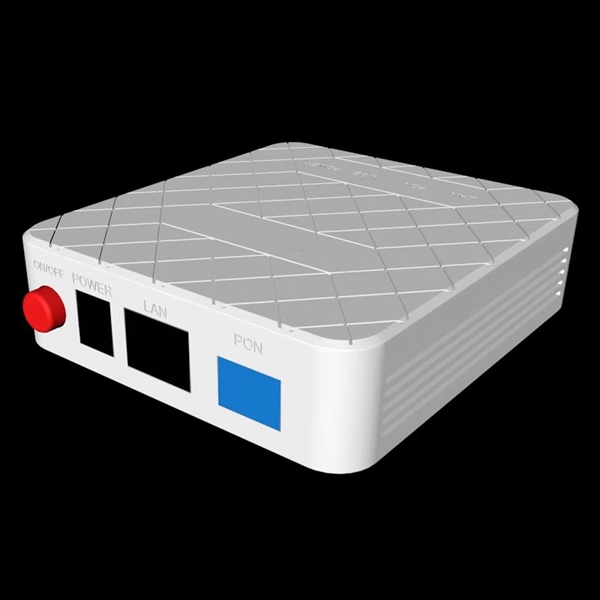

ONU-X7110

ONU-X7110 XPON(GPON and EPON dual mode) ONU is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. It can be used as GPON or EPON.

Features:

• Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
• Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
• Support China Telecom GPON CTC3.1 standard and expand OAM
• Support DBA reporting mechanism request
• Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
• Support to save configured parameters if power down
• Support to configure the work mode at the user port
• Support MDI-MDIX automatic-detection at the user port.
• Support access authentication based on serial number
• Support access authentication based on MAC address
• Support 802.1Q VLAN
• Support traffic rule to modify the related priority.
• Support to restore the factory settings
• Support the remote reset and reboot
• Support dying gasp outage alarm
• Full compatibility with OLT based on Broadcom/PMC/Cortina chipset.

Technical Parameters:
