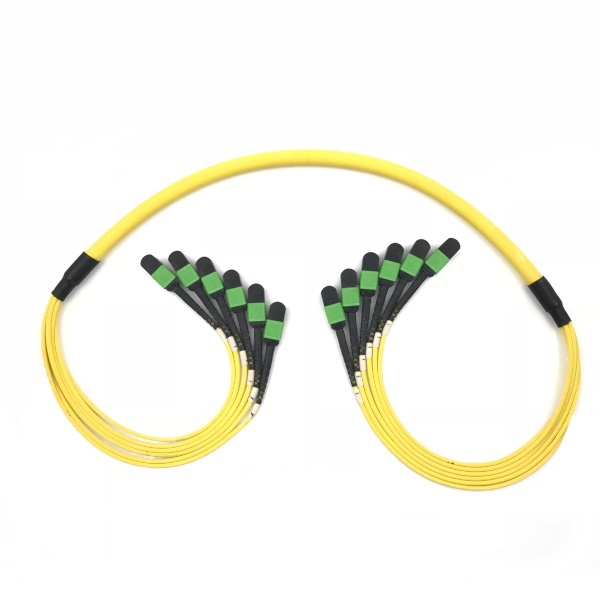

MPO/MTP assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized MPO/MTP fanouts. Our MPO/MTP assemblies are available with different core versions using a compact and rugged microcable structure. The compact cables optimize cableway use and improve airflow.
Features:
- Female (standard) and male MPO/MTP connectors
- Use multifiber round microcable
- Precision multifiber MT ferrule
- Polarity types of MPO/MTP trunk assembly: Type A (standard), B or C
- 100% optically tested in factory
- MTP Low Loss(Elite) version available upon request
- Bend-insensitive fiber available upon request
Specifications:
Singlemode | Multimode | |
Insertion Loss (MPO/MTP side)IEC 61300-3-4 (Against Ref) | ≤0.70dB | ≤0.50dB |
Return Loss (MPO/MTP side) | ≥50.0dB (APC) | |
DurabilityIEC 61300-2-2 | <0.2dB (500 cycles) | |
